CZDA is the proprietary damper motor for iZone clip-in and barrel dampers
iZone damper motors are designed specifically for iZone control systems and iZone barrel dampers. The motor colour is yellow

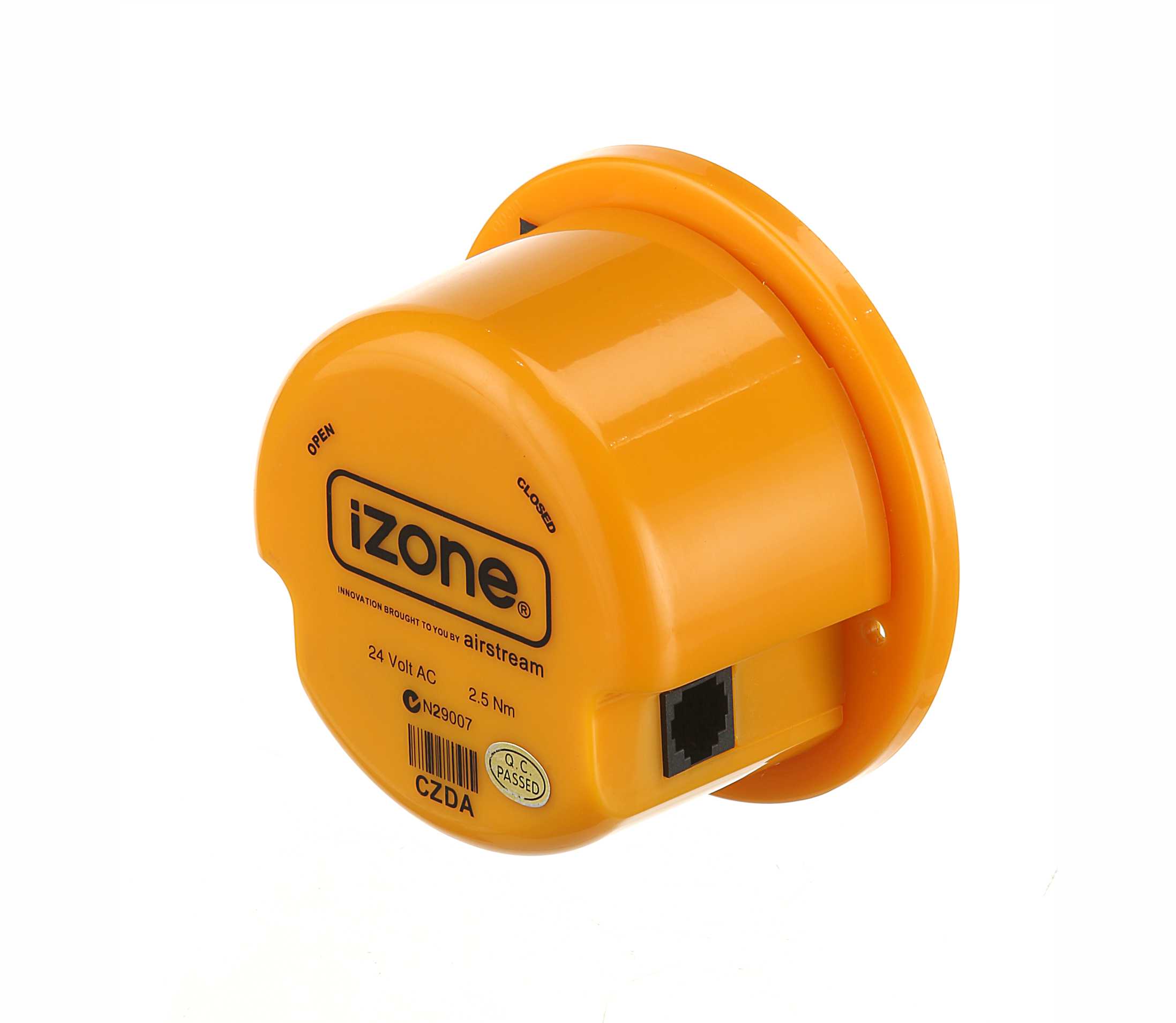

Diagram:
- Screen printing
- RJ12 Connector: Earlier models may be fitted with an RJ11 connector. Pin-out for the connector is indicated below
- Shaft: The square shaft is designed for iZone dampers but will also fit Advantage Air Exact Air fittings
- Casing
- Blade position indicator: Indicates the position of the motors / blade between open and closed. The indicator must be free to move. If it is obstructed the motor will be damaged.
- Fixing screws: Two screws are used to fix the motor to the damper body.
| iZone Damper Actuator Specification
| |
| Model numbers | CZDA |
| Power supply | 24VAC 50Hz |
| Power connection | |
| Power consumption | 5 VA |
| Operating Temperature | Up to 65oC |
| RPM | 1.04 |
| Torque | 2.5Nm |
| Drive rotation | Clockwise and Counter clockwise |
| Stop mechanism | Independent micro switches for open and closed |
| O/A Dimensions | Height 57mm (Excludes shaft) Diameter 100mm |
| Weight | 348g |
